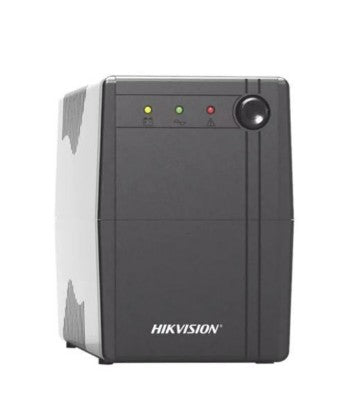

UPS HIKVISION DS-UPS1000-X | 600W | 1000VA

DS-UPS1000

• Características
• Regulador automático de voltaje (AVR) integrado
• Carga ultrarrápida
• Amplio rango de voltaje de entrada
• Protección contra sobrecargas
• Protección contra cortocircuitos
• Protección contra sobretensiones

Especificaciones

Alimentación

• UPS Capacity1000 VA / 600 W

Entrada

• Input Voltage Range85 VAC to 150 VAC
• Input Frequency50/60 Hz self-adaptive
• Plug TypeType B (NEMA 5-15)

Salida

• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Rango de voltaje de salida110 VAC to 125 VAC
• Transfer Time≤ 10 ms
• WaveformPWM
• Outlet TypeType B (NEMA 5-15)
• Outlet NumberBattery outlet*4 & Bypass*2

Batería

• Tipo de batería12 V/9 Ah, lead-acid battery
• Recharge Time4-6 hours recover to 90% capacity

• Typical Backup Time

  Run time at 60w: 60 min

  Run time at 150w: 15 min

  Run time at 300w: 2 min

Interfaz

• Communicate PortsNo

Protección

• Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

Indicador

• Pantalla

  LED indicator

  Working Mode (AC Mode): Solid green

  Charging Mode (DC Mode): Solid red

  Overloading Mode: Flashing yellow

• Alarma

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

General

• Temperatura de funcionamiento0 °C to 40 °C (32 °F to 104 °F）
• Condiciones de humedad30% to 90% (non-condensing)
• Dimensión274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
• Approx. 5.4 kg (11.9 lb)
